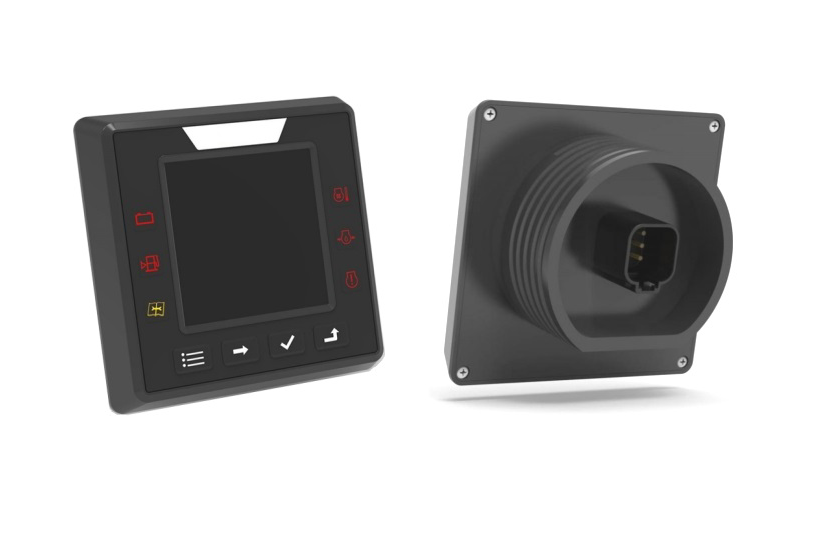

ICA3601-030HI显示器是一款小型显示器。ICA3601-030HI显示器采用STMicroelectronics 32位处理器、ARM Cortex-M4内核、3英寸的单色液晶屏，设计紧凑，外观简洁大方，按键设有背光灯，方便夜间操作。并且ICA3601-030HI显示器采用CAN通讯接口，方便组网。

ICA3601-030HI monitor is a compact monitor. ICA3601-030HI monitor adopts STMicroelectronics 32-bit processor, ARM Cortex-M4 core, and 3-inch monochrome LCD screen, with compact design, simple and generous appearance, and the buttons are equipped with a backlight for convenient night operation. Moreover, ICA3601-030HI display adopts CAN communication interface, which is convenient for networking.

体积紧凑；

即插即用（支持定制化编程）；

快捷安装，自带锁定螺母，无需工具即可安装；

宽温工作；

默认6组警示图标，总线控制，专为柴油发动机设计；

警示灯置于液晶外单独显示，报警清晰，节约液晶显示面积；

默认1路低边开关量输出端口（可作为报警喇叭、灯光、控制输出），1路燃油油箱专用电阻型模拟量输入端口（有效检测范围30-1000Ω，满量程精度3%）。

Compact size;

Plug and play (supports customized programming);

Quick installation with its own locking nut for tool-less installation;

Wide temperature operation;

Default 6 groups of warning icons, bus control, designed for diesel engines;

Warning light is placed outside the LCD for separate display, clear alarm, saving LCD display area;

Default 1 low-side switching output port (can be used as alarm horn, light, control output), 1 special resistive analog input port for fuel tank (effective detection range of 30-1000Ω, full scale accuracy of 3%).
