F102 Controller
Safe and reliable for the complex environment of the construction machinery industry
F102控制器是一款适用于复杂工况，并为工程机械行业专门设计开发的功能强大的控制器产品。产品集成高速运算芯片，具有端口诊断功能，对各种故障类型进行快速、准确判断，便于检查端口故障，提高维修效率，降低维修成本。
F102 controller is a powerful controller product suitable for complex working conditions and specially designed and developed for the construction machinery industry. The product integrates a high-speed computing chip with port diagnostic function, which can make quick and accurate judgment on various fault types, facilitate the checking of port faults, improve the maintenance efficiency and reduce the maintenance cost.

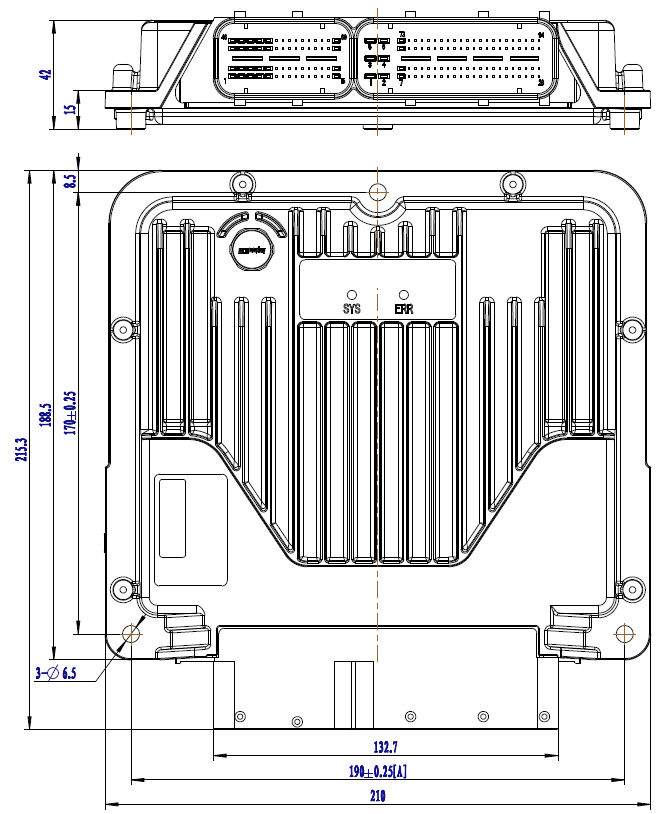

Technical Parameters | |
工作电压/Operating Voltage | 8~36V DC, Rated 24V |
工作温度/Operating Temperature | -40℃~+85℃ |
存储温度/Storage Temperature | -40℃~+85℃ |
电流消耗/Current consumption | <290mA@24V System |
最大负载/Maximum Load | 30A |
处理器单元/Processor Unit | 32Bit 300MHz , 3 Core Processor |
RAM | 4MB |
参数空间/Parameter space | 32KB FRAM, 1 billion times erasure |
Flash | 6MB |
状态指示灯/Status Indicator | SYS Indicator, USER Indicator |
防护等级/Protection class | IP66/67 (with matching plug) |
Technical Parameters | |
工作电压/Operating Voltage | 8~36V DC, Rated 24V |
工作温度/Operating Temperature | -40℃~+85℃ |
存储温度/Storage Temperature | -40℃~+85℃ |
电流消耗/Current consumption | <290mA@24V System |
最大负载/Maximum Load | 30A |
处理器单元/Processor Unit | 32Bit 300MHz , 3 Core Processor |
RAM | 4MB |
参数空间/Parameter space | 32KB FRAM, 1 billion times erasure |
Flash | 6MB |
状态指示灯/Status Indicator | SYS Indicator, USER Indicator |
防护等级/Protection class | IP66/67 (with matching plug) |
Input Ports | No. | 参数/Configuration |
DIL/DIH | 6 | 低有效开关量输入，可软件配置为高有效/Low validity switching inputs, software configurable to high validity |
DIL_SR | 1 | 安全型开关量输入/Safe switching inputs |
VI(0~32V) | 3 | 0~32V模拟量输入/0~32V analog input |
VI/CI | 20 | 0~5V模拟量输入，可复用为4~20mA 输入/0~5V analog input, can be multiplexed to 4~20mA inputs |
RI（0~2KΩ） | 2 | 0~2KΩ电阻型模拟量输入，可软件配置量程为0~337.7Ω/0~2KΩ resistive analog input, software configurable to range from 0~337.7Ω. |
RI（0~50KΩ） | 1 | 0~50KΩ电阻型模拟量输入/0~50KΩ resistive analog inputs |
PI | 9 | PWM占空比输入，可复用为频率量输入/PWM duty cycle input, can be multiplexed as frequency input. |
Output Ports | No. | 参数/Configuration |
AO（0~5V） | 2 | 0~5V模拟量输出信号 /0~5V analog output signal |
DOH/PWM 2A | 8 | 开关量输出，2A，可复用为PWM，不带电流反馈/Switching output, 2A, multiplexable to PWM, without current feedback |
PWM 1.5A | 30 | PWM输出，带颤振功能，1.5A，带电流反馈/PWM output with chattering, 1.5A, with current feedback |
DOL_SR | 1 | 安全型低边输出，2A/Safe low side output, 2A |
DOH_SR | 1 | 安全型高边输出，2A/Safe high side output, 2A |
