拉式力传感器是由防锈、耐腐蚀的优质钢材制成。测量点位于两个安装孔的中心。采用应变式桥式测量电路，测量点由两层外罩保护。

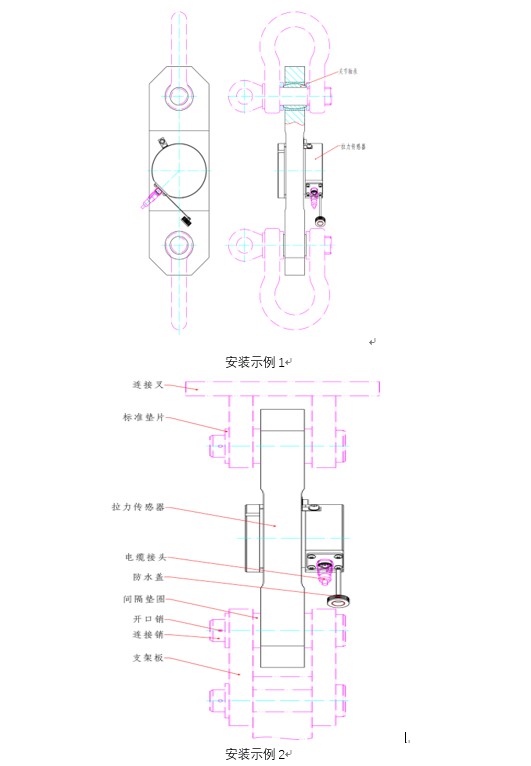

负载沿着两个固定点以拉力的方式加载，应变片随弹性体的微变形而变形，桥式测量电路把这个应力转变为与负载成比例的电信号。经过温度补偿，校准等工艺过程，由内置或外置的放大器将信号转变成需要的输出信号。

The tensile force sensor is made of high quality steel with rust resistance and corrosion resistance. The measurement point is located at the center of the two mounting holes.

The strain-type bridge measuring circuit is used, and the measuring point is protected by two layers of outer cover. The load is loaded along two fixed points, the strain gauge deform with the microdeformation of the elastomer, and the bridge measuring circuit transforms this stress into an electrical signal proportional to the load. After temperature compensation, calibration and other processes, the built-in or external amplifier transforms the signal into the desired output signal

标准化产品或客户定制化产品/Standardized products or customer-customized products

安装简单方便/The installation is simple and convenient

极高的过载保护能力和抗疲劳极限/Very high overload protection capacity and fatigue resistance limit

高精确度和线性度/High precision and the linearity

具备温度补偿/Have temperature compensation

测力范围从0.5吨到千吨级/ force range from 0.5 tons to thousand tons

高防护等级：IP66、IP67/High protection level: IP66, IP67

使用寿命长、无须保养/Long service life, no maintenance
